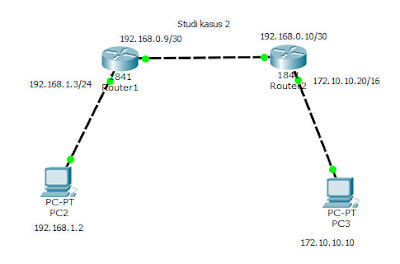

//Konfigurasi router 1
Router>enable
Router#configure terminal
Enter configuration commands, one
per line. End with CNTL/Z.
Router(config)#interface fa0/0
Router(config-if)#ip address
192.168.0.9 255.255.255.252
Router(config-if)#no shutdown
Router(config-if)#
%LINK-5-CHANGED: Interface
FastEthernet0/0, changed state to up
Router(config-if)#exit
Router(config)#interface fa0/1
Router(config-if)#ip address
192.168.1.3 255.255.255.0
Router(config-if)#no shutdown
Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/1,
changed state to up
%LINEPROTO-5-UPDOWN: Line protocol
on Interface FastEthernet0/1, changed state to up
Router(config-if)#exit
Enter configuration commands, one
per line. End with CNTL/Z.
//Konfigurasi network pada router 1
Router(config)#router rip
Router(config-router)#network
192.168.0.0
Router(config-router)#network
192.168.1.0
Router(config-router)#exit
Router(config)#exit
Router#
%SYS-5-CONFIG_I: Configured from
console by console
Router#write
Building configuration...
[OK]
Router#
Lakukan hal yang sama pada router 2 seperti dibawah ini
//Konfigurasi router 2
Router>enable
Router#configure terminal
Enter configuration commands, one
per line. End with CNTL/Z.
Router(config)#interface fa0/0
Router(config-if)#ip address
192.168.0.10 255.255.255.252
Router(config-if)#no shutdown
Router(config-if)#
%LINK-5-CHANGED: Interface
FastEthernet0/0, changed state to up
Router(config-if)#exit
Router(config)#interface fa0/1
Router(config-if)#ip address
172.10.10.20 255.255.0.0
Router(config-if)#no shutdown
Router(config-if)#
%LINK-5-CHANGED: Interface
FastEthernet0/1, changed state to up
%LINEPROTO-5-UPDOWN: Line protocol
on Interface FastEthernet0/1, changed state to up
Router(config-if)#exit
Enter configuration commands, one
per line. End with CNTL/Z.
//Konfigurasi network pada router 2
Router(config)#router rip
Router(config-router)#network
192.168.0.0
Router(config-router)#network 172.10.10.0
Router(config-router)#exit
Router(config)#exit
Router#
%SYS-5-CONFIG_I: Configured from
console by console
//Menyimpan data
Router#write
Building configuration...
[OK]
Router#
%LINEPROTO-5-UPDOWN: Line protocol
on Interface FastEthernet0/0, changed state to up
Router#
Sekian , jika ada pertanyaan silahkan bertanya di kolom komentar dibawah ini : )
